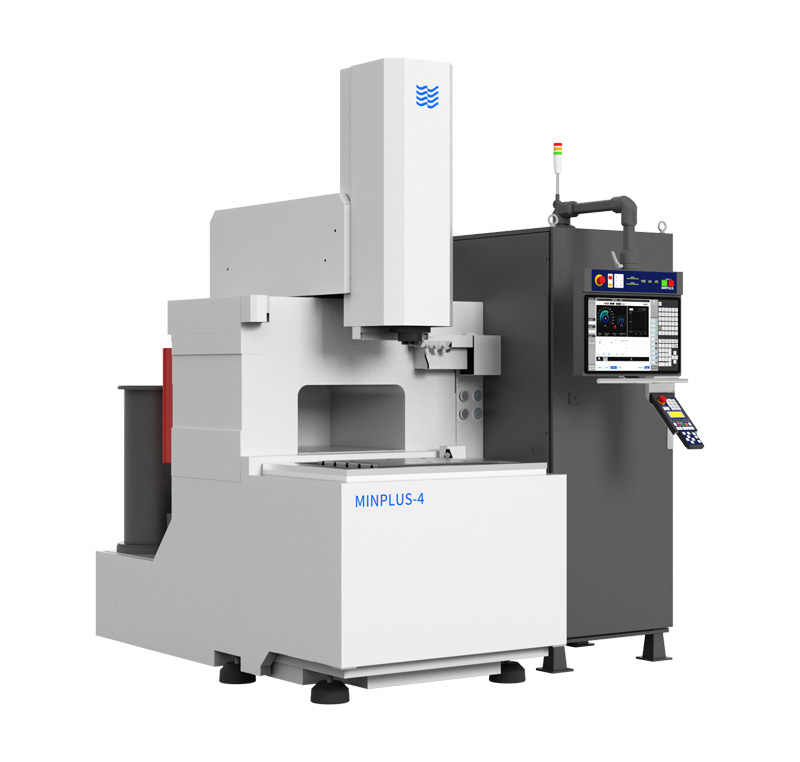

MINPLUS-4 CNC 와이어 커팅 머신

Shaft travel(X×Y×Z)

450×350×300     mm

Internal dimensions of the processing fluid tank (width × depth × height)

970×750×390     mm

Maximum processing fluid height

280 mm

Workbench dimensions (width × depth)

650×500 mm

Fastest movement speed

5000 mm/min

Fastest jump speed along the Z-axis

10000 mm/min

Oil tank lifting system

Vertical lifting

Maximum electrode weight (standard spindle head)

30 kg

Maximum workpiece weight

500 kg

The lowest point of the Z-axis is the standard spindle head (below the chuck to the worktable).

250 mm

Table height

830 mm

Workbench T-slots (width × number of slots)

10 mm×5 slots

Machine tool dimensions (width × depth × height)

1800×2200×2350      mm

Machine tool weight (including power supply frame)

3100 kg

Processing fluid supply device

 Type

Split-type machine tool

Total amount of processing fluid

400L

Fast oil pump

1.1 kW

Cooling pump

0.75 kW

Processing fluid filtration

External pressure paper filter element

Filter element root

2

Power supply device

Type

Split-type machine tool

Main panel type

Integrated electrical control box (optional hanging type)

Portable control panel

Intelligent multi-functional

Machine power supply

60A (80A optional)

Accuracy

Positioning accuracy (full stroke)

±0.005   mm

Repeatability (full stroke)

±0.003 mm

Control system

MINPULS

Three-axis lead screw guide rail

PMI/THK

Three-axis servo motor

Mitsubishi fiber optic servo

Ultrafine circuit

Automatic fire extinguisher

Extinguishing agent capacity

1.5L

Number of sensors

1pc

Number of nozzles

1pc

External dimensions (width × depth × height)

210×167×405mm

Fire extinguishing agent

Contains a 6% light aqueous solution (foam extinguishing agent).

Detector type

Bimetallic

Operating temperature

60℃

Power supply

AC200V

Ambient temperature top line

5~40℃

Oil temperature sensor

Resistance Temperature Detector

Electric rotary circulating pump

500W(2P)

External dimensions (width × depth × height)

360×420×755mm

Weight

45kg

Portable control panel

Power circuit breaker
